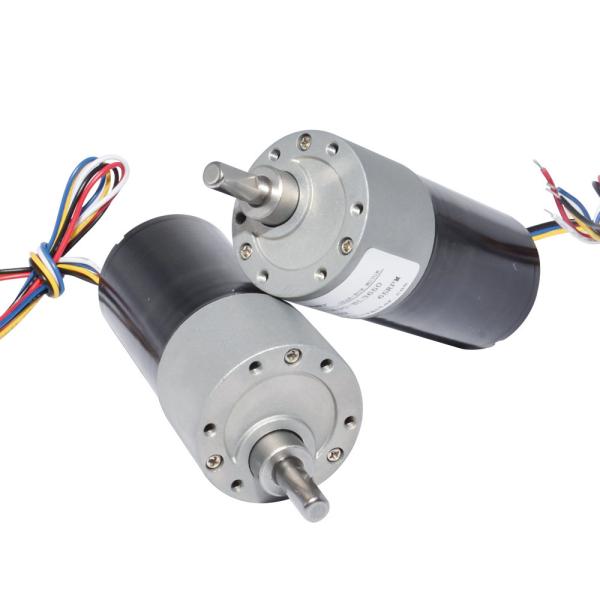

12v 24v 12 24 Volt 100w Micro Brushless Bldc Worm Gear Geared
Reducer Dc Motors
- Cup-shaped winding stator, without cogging effect, friction torque
is very small
- Nd-Fe-B magnet, high power density
- NMB & NSK ball bearing
- Hall sensor inside, easy to drive
- Aluminium alloy shell, excellent heat dissipation, lower
temperature rise
- Novel structure for the covers and frame combination, ensure the
installation precision
Notice for Usage:
1). Please don't use motor out of the range of nameplate of gearbox
and motor and the specification of product
catalogue, avoiding getting an electric shock, hurting or damaging
the device.
2). Please do not put your fingers and things into
the opening part of gear or motor, in order to prevent getting and
electric shock, hurting,catching a fire of damaging device etc.
3). Please do not use the Injured gear head of motor, in prder to
orevent hurting, catching a fire etc.
4). Please do not put off the namePlate.
5) If the products are reformed by the customers personally, it no
longer belongs to the guarantee scope, and our
company doesn’t undertake any responsibility.
6) When you move it, if it shed off or tilt to one side, it is very
dangerous,
please pay more attention.
7) Please must not put the flammable thing near the gear head and
motor, in order to prevent catching a
fire.
Product Description
1. Three phase BLDC motor;
2. Made of anti-high temperature permanent magnet and high quality
cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires
auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable
performance;
6. Excellent internal damping, can be used by different industries
and under any circumstances, long lifespan.
Date Sheet
| Product Name: | Slotless brushless dc motor |
| Diameter: | Φ32mm |
| Shaft Diameter: | 8.0mm |
| Input Voltage: | DC 12V 18V 24V 30V 36V 48V |
| Life Time: | 20,000 hours |
| Operation Temperature: | -30℃ to 85℃ |
| Storage Temperature: | -30℃ to 105℃ |
| Number of Pole Pairs: | 1 |
| Number of Phase: | 3 |
| Keywords: | 100w brushless dc motor geared |
