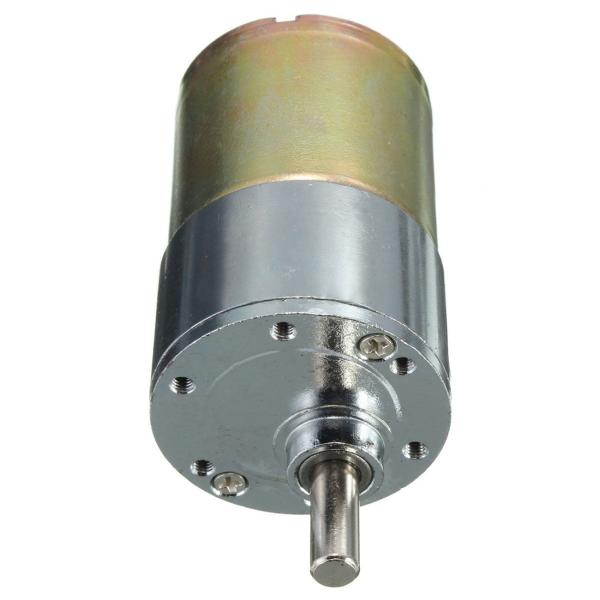

OD 63mm 12V Brushed DC Motor High Torque Permanent Magnet

OD 63mm High Torque Permanent Magnet Brushed Dc Motor 12V

We provide all kinds of permanent magnet DC gear motor, including spur gear motor, planetary gear motor, worm gear motor and flat gear motor.

* DC spur gear motors

Diameter: 16mm, 17mm, 25mm, 33mm, 37mm, 42mm, 50mm, 60mm;

Power: 1watt to 70watts; Speed: 1rpm to 2000rpm; Torque: 1gf.cm to 80kgf.cm;

* DC planetary gear motors

Diameter: 16mm, 22mm, 24mm, 28mm, 30mm, 32mm, 36mm, 38mm, 42mm, 45mm, 50mm, 55mm, 57mm, 60mm;

Power: 1watt to 180watts; Speed: 1rpm to 2000rpm; Torque: 1gf.cm to 450kgf.cm;

* DC flat gear motors

Gearbox size: 64*38mm, 65*48mm, 96*60mm, 102*60mm flat gearbox;

Power: 1watt to 70watts; Speed: 10rpm to 500rpm; Torque: 0.5kgf.cm to 80kgf.cm;

Product Description

Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W

Number Of Phase	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	48
Rated Speed	Rpm	3000
Rated Torque	N.m	0.35	0.7	1.05	1.4
Rated Current	Amps	3	5.5	8	10.5
Rated Power	W	110	220	330	440
Peak Torque	N.m	1.05	2.1	3.15	4.2
Peak Current	Amps	9	16.5	24	31.5
Back E.M.F	V/Krpm	13.5	13.3	13.1	13
Torque Constant	N.m/A	0.13	0.127	0.126	0.124
Rotor Inertia	g.c㎡	210	420	630	840
Body Length	mm	78	98	118	138
Weight	Kg	1.4	2	2.6	3.2

Product Series	Poles No.	Rated Voltage	Rated Speed	Rated Torque	Rated Power	Motor Length
57mm DC Motor	4	36v	4000rpm	0.055~0.44N.m	23~184w	37~107mm
60mm DC Motor	8	48v	3000rpm	0.3~1.2N.m	94~377w	78~120mm
80mm DC Motor	4	48v	3000rpm	0.35~1.4N.m	110~440w	78~138mm
86mm DC Motor	8	48v	3000rpm	0.35~2.1N.m	110~660w	71~138.5mm
Above only for representative products, products of special request can be made according to the customer request.

Company Introduction

Changzhou paliwei Motor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.

Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
